Description

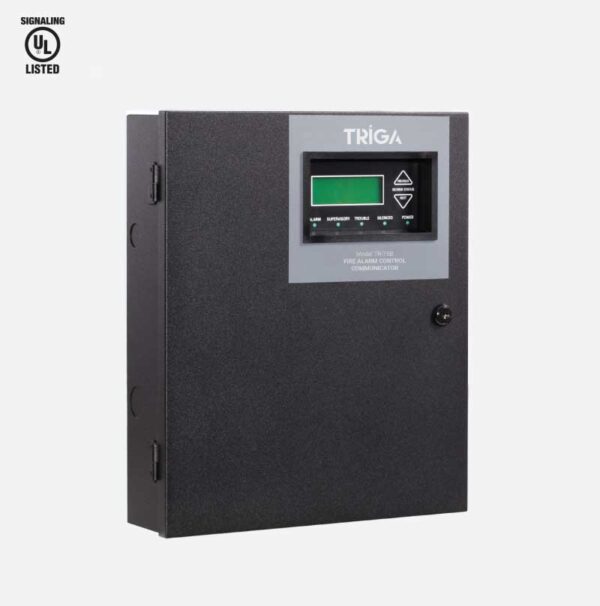

TR-75R (red) and TR-75B (black) are intelligent addressable fire alarm control panels (FACP). TR-75 has a single line circuit (SLC) loop for connecting addressable detectors, which can support 75 TRIGA sensors and modules per loop. For TRIGA devices the overall point capacity to a maximum of 150 points per panel.
TR-75 has the interconnection capability for up to 32 panels. The system has two modes of operation, multiple panels covering one larger building, or multiple independent buildings. To network panels together use the TR-NIC network interface card. Copper wire or fiber optic cable panel connectivity can be used within the same networked system.
The TR-75 supports a variety of devices, including TR-RD2R, TR-RD1R remote annunciator, TR-5824 serial/parallel printer interface module (for printing system reports), TR-RPS1 power module, and TRIGA SWIFT wireless devices.
Features & Benefits
• Network support for up to 32 Sites
• Built-in support for up to 75 TRIGA detectors and 75 TRIGA modules
• Four-line LCD display with 40 characters per line
• Available in a red or black cabinet
• TR-75 can be surface or flush mounted
• Built-in USB interface for convenient and quick programming
• Programmable date setting for Daylight Saving Time
• JumpStart Auto Programming® feature for easy programming
• Built-in dual phone line, digital alarm communicator/ transmitter (DACT), IP or optional cellular Technologies
• Convenient field-upgradable firmware
• Supports Class B (Style 4) and Class A (Style 6 or Style 7 configuration for SLC, and SBUS
Technical Specifications
PHYSICAL
Overall Dimensions: 15.12”H x 12.71″W x 3.33” D
Shipping Weight: 15 lbs. Color: Red or Black
ENVIRONMENTAL
Operating Temperature: 32°F to 120°F (0°C to 49°C)
Humidity: 0 to 93% relative humidity (non- condensing)
ELECTRICAL:
TR-75 Primary AC: 240 VAC @ 60 Hz, 1A Total
Total Accessory Load: 2.5A @ 27.4VDC power- limited
Standby Current: 165mA Alarm Current: 310mA
Battery Charging Capacity: 7 to 35AH
Battery Size: 7AH max. allowed in control panel cabinet.
Larger capacity batteries can be housed in RBB accessory cabinet.
ORDERING INFORMATION
TR-75R: Intelligent Fire Alarm Control Panel. Red Cabinet.
TR-75B: Intelligent Fire Alarm Control Panel Black Cabinet.
SBUS ACCESSORIES
TR-RD2R, TR-RD2G, TR-RD1R, TR-RD1G:
Remote annunciators
TR-6815: Signal Line Circuit (SLC) Expander
TR-RPSI: Power Supply
TR-5824: Serial/Parallel Module
TR-5880: LED I/O Module
TR-5865-3 or TR-5865-4: LED Annunciator
TR-5883: Relay Interface
MISCELLANEOUS ACCESSORIES
HFSS: Software Suite. Provides programming, upload/download and event reporting.
RBB: Remote Battery Box Cabinet. Use for backup batteries up to 35AH.
Dimensions: 16″W x 10″H x 6″D
TR-NIC: Network Interface Card
TR-FML: Multi Mode Fiber Card
TR-FSL: Single Mode Fiber Card
