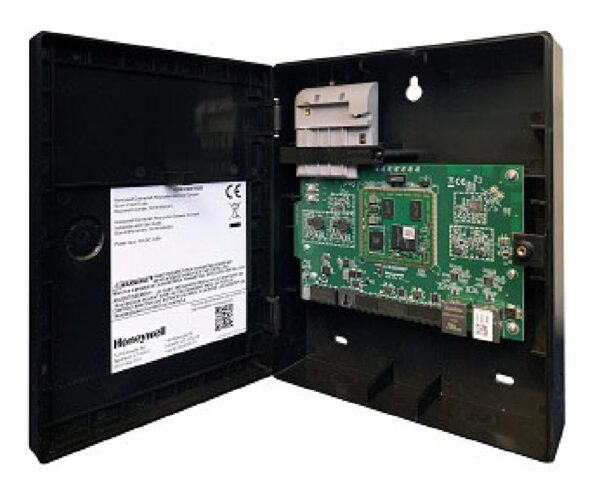

CLSS Gateway

FEATURES AND BENEFITS

  • Connects directly to compatible Honeywell fire alarm control panels (FACPs) or panel networks
  • Provides seamless integration with the CLSS Checkpoint mobile application
  • Bluetooth® mobile pairing for Gateway Configuration and Control capability on Android ™ and iOS® devices
  • Wireless or Wired Connection from the Gateway to the CLSS Cloud
  • Panel connection options include Standalone Panel, Networked Panel, and Standalone with Digital Voice Control
  • Can be used for portable or permanently installed applications
  • Serves as a Fire Alarm Communicator to central station when used with optional cellular module and feature activation
  • Collects system data from the connected FACP and sends it to the CLSS Cloud enabling productivity and efficiency tools and features





Description

FEATURES AND BENEFITS

  • Connects directly to compatible Honeywell fire alarm control panels (FACPs) or panel networks
  • Provides seamless integration with the CLSS Checkpoint mobile application
  • Bluetooth® mobile pairing for Gateway Configuration and Control capability on Android ™ and iOS® devices
  • Wireless or Wired Connection from the Gateway to the CLSS Cloud
  • Panel connection options include Standalone Panel, Networked Panel, and Standalone with Digital Voice Control
  • Can be used for portable or permanently installed applications
  • Serves as a Fire Alarm Communicator to central station when used with optional cellular module and feature activation
  • Collects system data from the connected FACP and sends it to the CLSS Cloud enabling productivity and efficiency tools and features





TECHNICAL SPECIFICATION

POWER

  • Nominal Voltage Range: Consumes 12 to 32 VDC from the fire alarm control panel (FACP) or from an external power source.
  • Current: The power requirement varies with the number of interfaces used.
  • Typical Current Consumption: 0.1A at 24 VDC (with wireless connection)
  • Peak Load: 0.25A at 24 VDC

ENVIRONMENT

  • Temperature: 14°F to 140°F (-10°C to 60°C)
  • Relative Humidity: 1% – 94% (noncondensing)

PHYSICAL

  • Enclosure Dimensions: 10.25″ L x 8″ x 3.75″(260.03mm L x 203.2mm W x 95.25mm D)
  • Weight: 1.6 lb (0.73 kg)

WIRELESS TRANSMITTER

  • VBAT: 3.6V
  • Ambient Temperature: 77°F (25° C)
  • Output power: @module RF antenna port
  • Target power: Meets Spectrum Mask and EVM compliance
